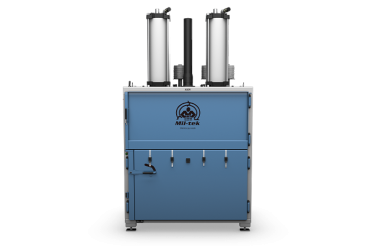

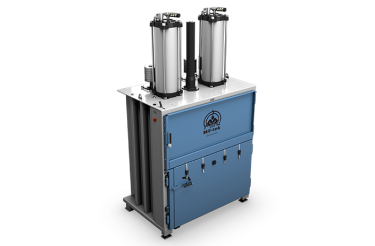

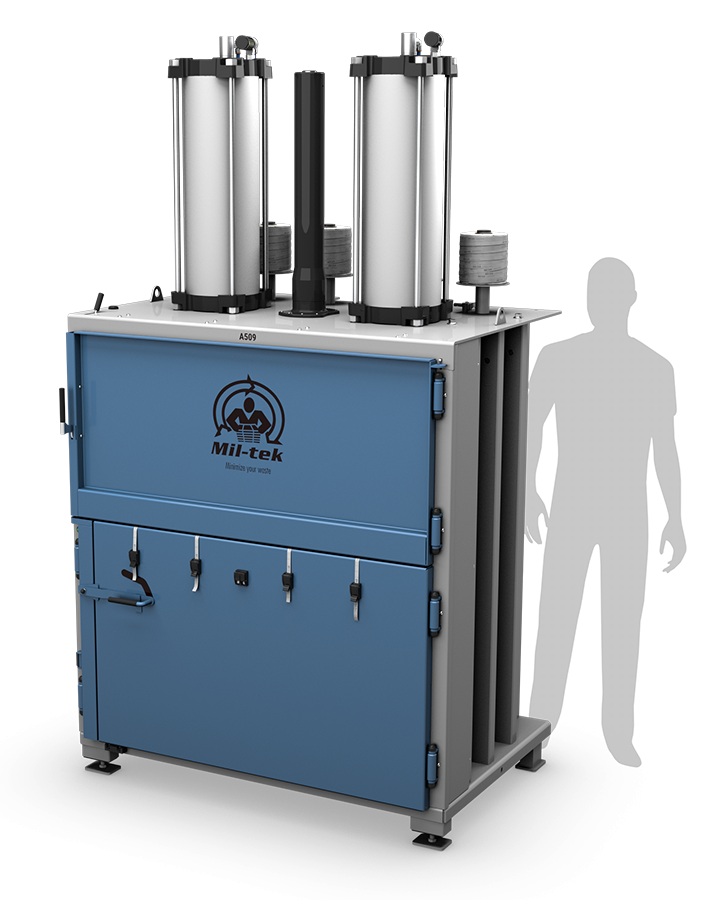

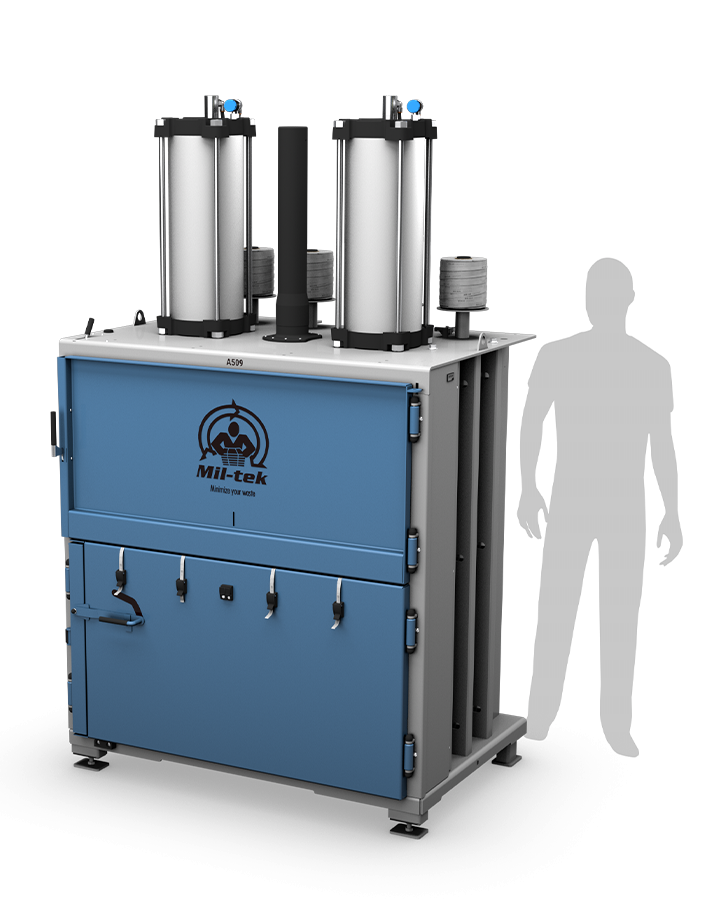

A509 Cardboard & Plastic Baler

The 3rd generation A509 cardboard and plastic baler
delivers super-fast pneumatic pressing power in a
compact 16.15 sq. ft. footprint. Combining speed and
strength, it’s designed for heavy-duty efficiency in
high-volume environments.

Bale up to 496 lbs cardboard / 661 lbs plastic
Dual, double-acting cylinders ECODrive powered
Auto bale-out system with bale-out indicator
Heavy-duty baler for large trash volumes
Adjustable bale size for flexibility
A footprint of 16.15 sq. ft. floorspace

Product Overview
Specifications

Need help?

The A509 is a heavy-duty baler with a compact 16.15 sq. ft. footprint, delivering 17636 lbs of pressing force and a rapid cycle time of under 15 seconds.

From up to 661 lbs plastic bales to 496 lbs cardboard bales, the A509 adapts to multiple recyclable materials. Its wide door and spacious pressing chamber make it ideal for tackling large volumes of bulky trash.

Fully compliant with EN16500 standards – as any Pneumatic Mil-tek machine, the A509 also features a safe, two-hand bale-out system, combining power, versatility, and safety.

Pneumatic cardboard and plastic baler A509

As part of Mil-tek’s third-generation pneumatic line, the A509 baler is built with 2 heavy-duty double-acting cylinders that compact with speed power just from compressed air.

No hydraulics, no oil, no mess. The A509 connects directly to your existing air source, providing clean, efficient energy and eliminating the risk of contamination.

Explore our full line of cardboard balers.
